Consumer Unit Replacement Cost UK 2026: Installation Prices

Dtec electrical
Oct 24, 2025
7 min read

Updated: Oct 27

Consumer unit replacement cost depends on the number of electrical circuits, the type of fuse board and the condition of the existing wiring. At DTEC Electrical, replacement prices start from £500 for a small bedsit fuse board upgrade. Electrical testing and any additional fault repairs are charged separately.


If you're comparing consumer unit installation cost, the cost of replacing a consumer unit or the price of changing an old fuse box, this guide explains what affects the final bill and what to check before accepting a quotation.


You'll find a breakdown by circuit count, an explanation of modern protective devices and answers to common pricing questions.



By DTEC Electrical | Technical expertise: David Thomson, 30+ years' electrical experience | Updated October 2026




How Much Does Consumer Unit Replacement Cost in the UK?

The price of replacing a consumer unit varies between properties. A small installation with a few circuits generally requires less equipment and labour than a larger home with several electrical supplies.

At DTEC Electrical, a small bedsit fuse board upgrade starts from £500. This is the starting charge for the replacement work, not a complete price including testing and any necessary repairs.

There is no single fixed price for every UK property. An electrician needs to assess the installation before giving an accurate quotation.




Consumer Unit Replacement Cost by Circuit Count

Property or installation

DTEC replacement price

Small bedsit fuse board

From £500

Small flat, 4–6 circuits

Written quotation

Small house, 6–8 circuits

Written quotation

Medium house, 9–10 circuits

Written quotation

Larger house, 11–12 circuits

Written quotation

Larger installation, 13+ circuits

Written quotation

The circuit counts are examples, not fixed property classifications. Testing and additional fault repairs are charged separately.


Why Circuit Count Matters

Each electrical circuit requires suitable protection. A home with electric heating, outdoor sockets, an electric shower or an EV charger may have more circuits than another property of similar size.

More circuits can mean additional protective devices, connections, labelling and testing.

A 10-way consumer unit also does not necessarily have ten connected circuits. Spare ways may be provided for future use.


Key point: The number of bedrooms alone cannot determine the cost. The existing circuits, equipment specification and wiring condition are more important.




Consumer Unit Installation Cost: What's Included?

The consumer unit installation cost should be explained in a written quotation before work begins.

Replacing a fuse board involves selecting suitable equipment, isolating the electrical supply, removing the old unit and installing the replacement.

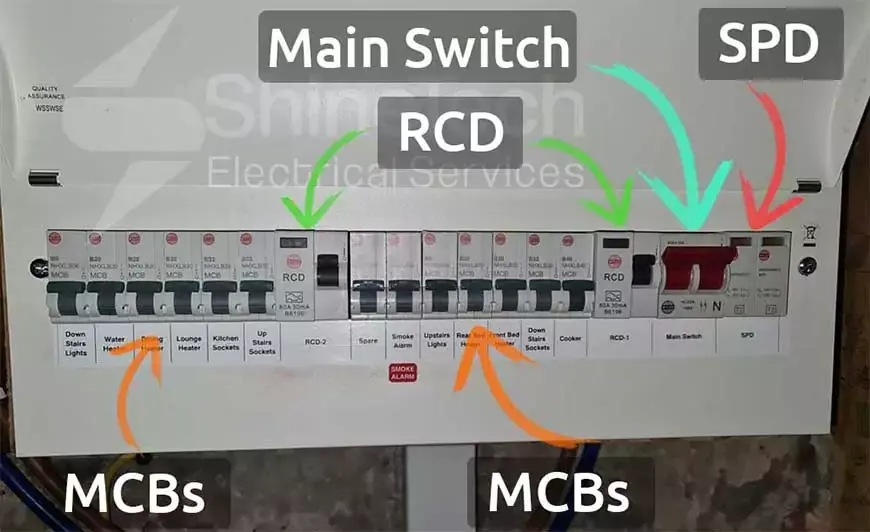

Consumer Unit and Protective Devices

The quotation should identify the type of consumer unit and the protection being supplied.

Common protective devices include:

  • MCBs: Protect circuits against overloads and short circuits.

  • RCDs: Detect certain residual-current faults and disconnect the affected supply.

  • RCBOs: Combine overcurrent and residual-current protection for individual circuits.

  • SPDs: Help protect equipment against certain transient overvoltages.

An RCBO-based consumer unit can provide better separation between circuits. If one circuit develops an earth leakage fault, other independently protected circuits may remain operational.

The correct protective arrangement depends on the installation and the applicable BS 7671 requirements.


Labour and Installation Work

The electrician must safely isolate the supply, remove the old equipment, fit the replacement board and reconnect the existing circuits where suitable.

A straightforward domestic replacement may take several hours. Restricted access, additional circuits or necessary alterations can increase the time required.



Electrical Testing and Certification

DTEC Electrical charges separately for electrical testing.

Testing is still essential. A replacement consumer unit must be properly inspected, verified and tested before the completed installation is put into service.


The appropriate Electrical Installation Certificate should be supplied following satisfactory completion.

Ask for the testing charge and certification arrangements to be clearly identified in your quotation.


What Is Not Included in the Starting Price?

The £500 bedsit starting price does not include electrical testing or additional repairs to existing faults.

Other work, such as moving the consumer unit, extending cables or correcting earthing defects, may also require a separate quotation.

The full scope should be agreed before work starts.




What Affects Consumer Unit Change Cost?

The consumer unit change cost depends on several technical and practical factors. Understanding these can help homeowners compare quotations fairly.


Number and Type of Circuits

More circuits generally require more protective devices and connections.

A property with electric heating, a workshop supply or several dedicated appliance circuits may need a larger board than a basic flat.


RCD or RCBO Consumer Unit

The choice of protective devices affects the equipment cost.

An RCBO-based board can provide individual residual-current protection for each circuit, reducing the chance that a fault on one circuit disconnects several others.

However, the most suitable arrangement depends on the installation rather than price alone.



Condition of Existing Wiring

One important cost factor is the condition of the circuits being transferred to the new consumer unit.

Older installations may contain insulation defects, damaged cables or unwanted connections between neutral and earth.

These problems may not have been obvious with the previous fuse board.

When modern protective devices are installed, existing faults can cause immediate tripping.



Why a New Fuse Board May Reveal Faults

For example, an older circuit may have an insulation fault that was not detected by the previous protective arrangement.

Once connected to a new RCBO, the circuit may trip because the device detects residual current.

The new board has not necessarily caused the fault. It may simply be detecting a problem that already existed.


The electrician must identify the cause and make the affected circuit safe.

DTEC Electrical charges separately for additional fault finding and repairs. Any extra work should be explained and agreed before proceeding.


Access and Consumer Unit Location

Replacing a board in its existing accessible position is generally simpler than relocating it.

Moving a consumer unit can require longer cables, suitable cable extensions, alterations to the mounting position and additional installation work.


These changes can increase labour and material costs.


Earthing and Bonding

The electrician must assess the earthing and bonding arrangements for the installation.

If these are unsuitable, corrective work may be necessary before the new consumer unit can be safely commissioned.

This is another reason why a quotation should not be based solely on the number of circuits.



Cost of Replacing a Consumer Unit: Is It Worth It?

The cost of replacing a consumer unit should be considered alongside the condition of the existing equipment, the protection it provides and the property's electrical needs.

A modern consumer unit can offer improved circuit protection and make faults easier to identify. However, replacing an old board does not automatically improve the condition of the wiring connected to it.



When Should an Old Fuse Box Be Replaced?

A qualified electrician may recommend replacement when the existing consumer unit is damaged, unsuitable or cannot provide the protection required for planned electrical work.

Warning signs include:

  • Scorch marks or signs of overheating.

  • Damaged covers or exposed live parts.

  • Burning smells or unusual noises.

  • Repeated electrical faults requiring investigation.

  • Unsuitable protective arrangements for new circuits.

These signs require professional assessment. They do not always mean a complete replacement is the only solution.


If there are signs of overheating or burning, avoid using the affected equipment and seek urgent electrical advice.



Does Consumer Unit Replacement Require Rewiring?

Not necessarily.

Existing wiring may be retained if it is suitable and passes the necessary checks.

A new consumer unit cannot repair damaged insulation, faulty appliances or poor connections elsewhere in the installation.

If testing reveals defects, the electrician should explain the findings and what needs to be repaired.



How Can You Compare Quotations?

Before accepting a consumer unit replacement quotation, check:

  1. Which consumer unit and protective devices are included?

  2. Is the replacement being fitted in the existing position?

  3. What is the separate electrical testing charge?

  4. What certification will be supplied?

  5. How will existing faults and additional repairs be priced?

  6. Are any other charges or exclusions identified?

A clear quotation makes it easier to compare the scope of work rather than choosing solely on the lowest initial price.


For more information about the safety benefits and installation process, read our consumer unit upgrade guide.




Consumer Unit Replacement Cost FAQs


How Much Does a Consumer Unit Cost?

At DTEC Electrical, consumer unit replacement starts from £500 for a small bedsit fuse board upgrade. Larger installations require individual quotations. Electrical testing is charged separately, along with any additional repairs needed to resolve existing wiring faults.


What Affects Consumer Unit Change Cost?

Consumer unit change cost depends on circuit count, protective devices, existing wiring, access and installation complexity. Testing, fault finding, earthing improvements and additional repairs can increase the total. A written quotation should explain the replacement work and separate charges.


How Much Does a 10-Way Consumer Unit Cost to Install?

A 10-way consumer unit requires an individual quotation. The price depends on the protective devices, number of connected circuits, wiring condition and installation work. DTEC Electrical charges separately for testing and any additional fault repairs.


Is Electrical Testing Included in Consumer Unit Replacement?

No. DTEC Electrical charges separately for electrical testing. The required inspection, verification and certification must still be completed before the installation is handed over. Ask for these charges to be confirmed in your written quotation.


Can a New Consumer Unit Reveal Existing Wiring Faults?

Yes. Modern RCBOs can detect existing insulation faults or unwanted neutral-to-earth connections that older protective arrangements did not reveal. These faults must be investigated and resolved before affected circuits can be safely returned to use.


How Long Does Consumer Unit Replacement Take?

A straightforward domestic replacement may take around four to eight hours, including necessary testing. Larger boards, restricted access and existing electrical faults can extend the job. The electrician should explain the expected disruption before installation begins.



Need a Consumer Unit Replacement Quotation?

DTEC Electrical provides consumer unit upgrades, electrical repairs and fault finding across Inverclyde and North Ayrshire.


Our family-run business is led by David Thomson, with over 30 years of electrical experience. We offer clear written quotations and a 12-month workmanship guarantee.


For local services, visit our Largs electrician, Greenock electrician or Inverclyde electrician pages.


Call 07882 372474 or request a written quotation.
